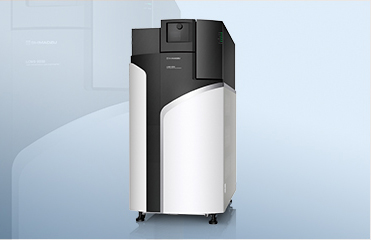

LCMS-9030 Q-TOF LC/MS System

The LCMS-9030 quadrupole time-of-flight (Q-TOF) mass spectrometer integrates the world’s fastest and most sensitive quadrupole technology with TOF architecture.

Categories: ,

Research-grade Q-TOF LCMS.  Perform Critical Analysis with Confidence.

A product of Shimadzu’s engineering DNA, the Q-TOF LCMS-9030 enhances the most important features of Q-TOF instrumentation – mass accuracy, sensitivity and speed – to enable users to effortlessly conduct critical qualitative and quantitative analysis with genuine confidence and ease. Combine with the unmatched solvent delivery of our UHPLC pumps and the rapid cycle times of our sample injectors to achieve unmatched reproducible, high-throughput analysis.

Reproducible Results

The LCMS-9030 Q-TOF delivers outstanding mass accuracy over a wide mass range, enabling users to consistently produce accurate identification results. In addition, the LCMS-9030 requires infrequent calibration, making it easy to achieve high mass accuracy over long periods.

High Sensitivity Detection

High efficiency ion guides, quadrupole, and collision cell enable high sensitivity for the detection of trace level compounds. And, due to its robust platform, the LCMS-9030 achieves reproducible quantitative analysis over longer periods of time.

Ultrafast Performance

The LCMS-9030 incorporates the patented ultrafast technologies used in Shimadzu LC-MS/MS platforms to deliver outstanding speed. Innovative TOF architecture enables precise, ultra-fast pulsing of ions into the flight tube and ideal reflection back to the detector. The result is high-speed data acquisition compatible with the high-throughput laboratory.

Core Ion Beam Technologies

Core Ion Beam Technology Component Diagram

The Q-TOF LCMS-9030 builds on proven LC-MS/MS technology and combines it with powerful TOF architecture to create a platform that transforms high mass accuracy workflows. These technologies include:

iRefTof Cutaway Diagram

UFaccumulationTM

Ion accumulation in the collision cell, synchronized perfectly with short cycles of data acquisition, maximizes sensitivity.

UFgratingTM

Made with substantial mechanical strength, this grating is able to withstand the high voltages needed for ultrafast ion pulsing.

Funnel MCP

Lossless microchannel plate design maximizes sensitivity.

UF-FlightTubeTM

The temperature-controlled UF-FlightTube requires less frequent calibration, enabling you to run more samples.

iRefTOFTM

Meticulously manufactured plate electrodes are stacked to create a reflectron that delivers a high resolution flight path with highly stable mass accuracy.

Software

LabSolutions LCMS is your single point of control for UHPLC and Q-TOF mass spectrometry data acquisition and analysis, providing researchers with easy, yet flexible workflows. Qualitative and quantitative acquisition modes that fully utilize the capability of the LCMS-9030 are:

  • MS
  • SIM
  • MS/MS
  • MRM
  • MS/MS (DDA)
Three of these modes, MS/MS, MRM, and MS/MS (DDA), allow the user to fully customize settings such as the quadrupole isolation window.
