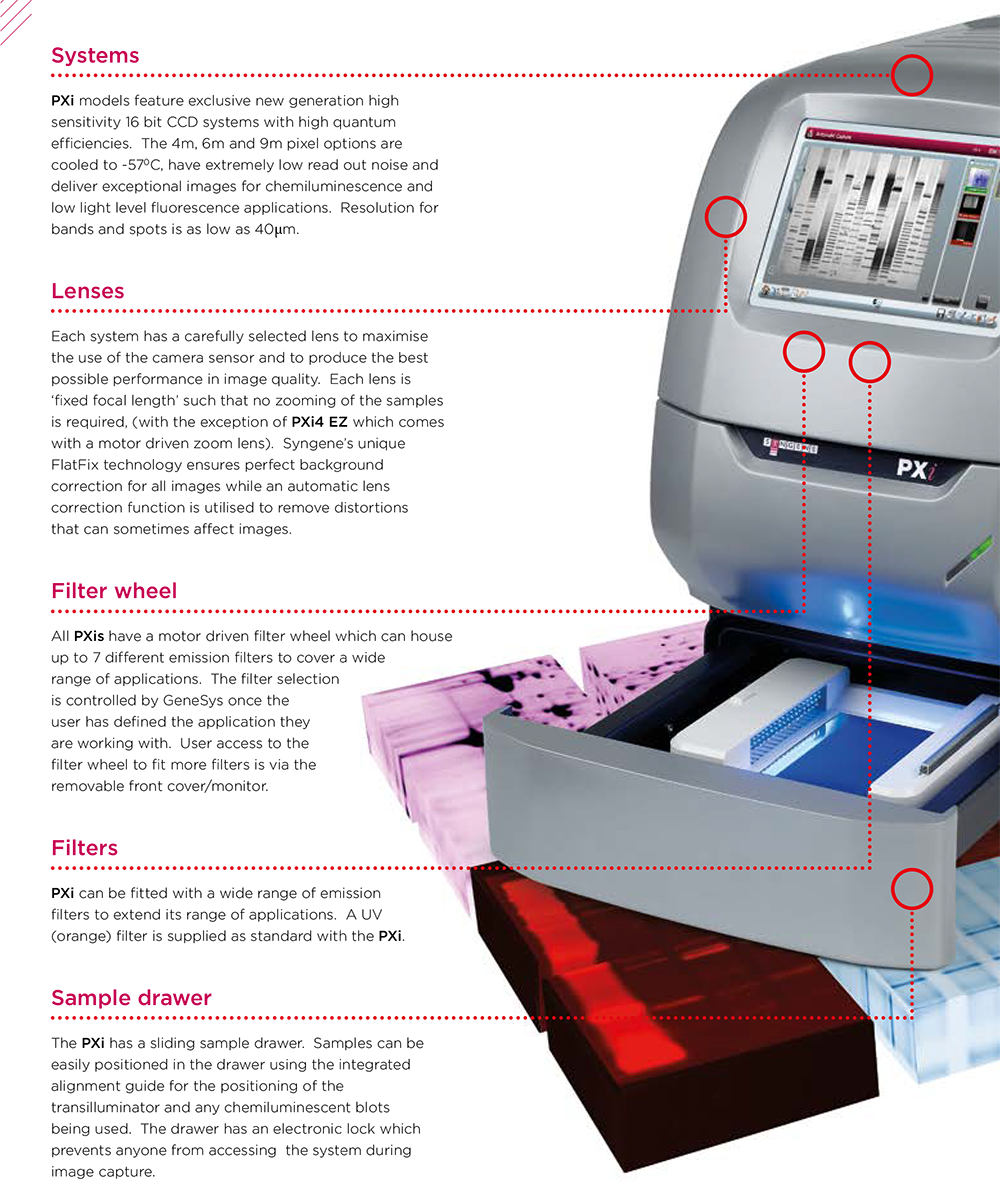

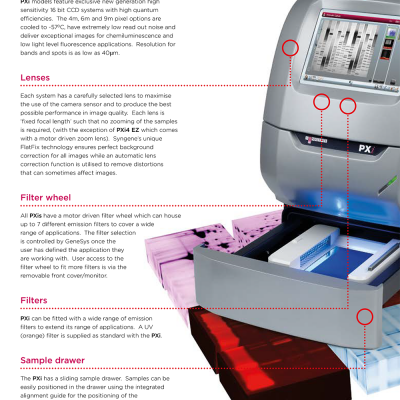

The PXi range consists of new high resolution, multi-application image analysis systems. The new design is compact, easy to use and offers full automation in the capture of chemiluminescent and fluorescent blots, visible gels and blots and even 2D gels.

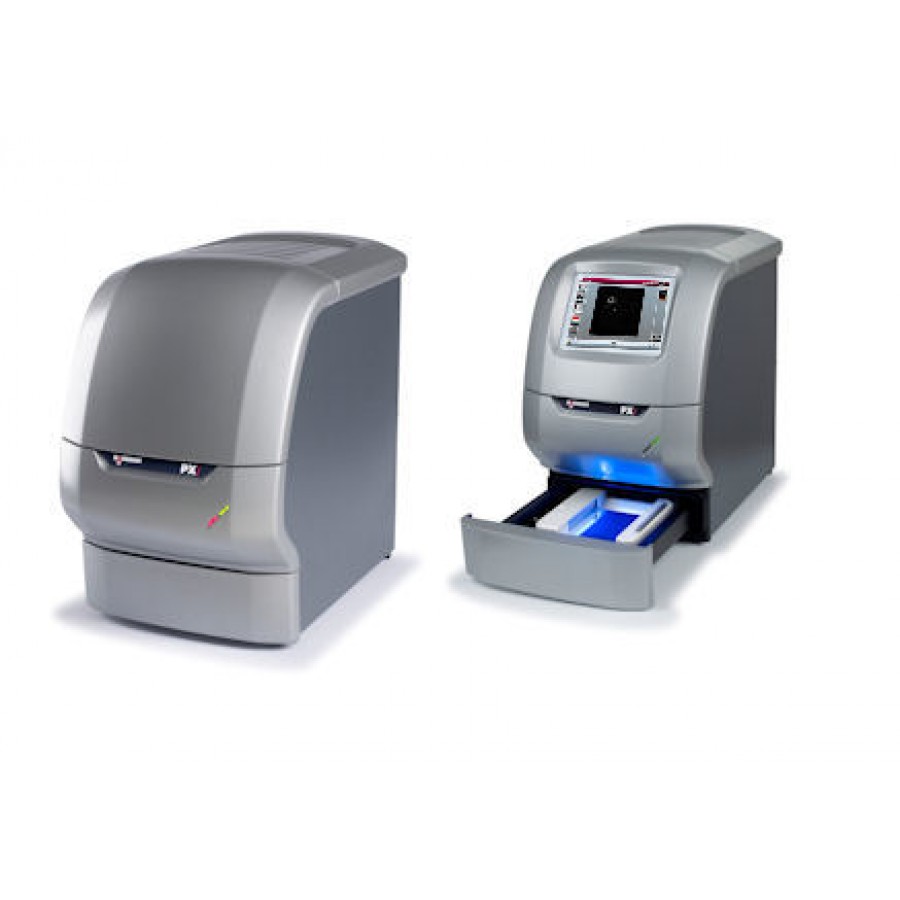

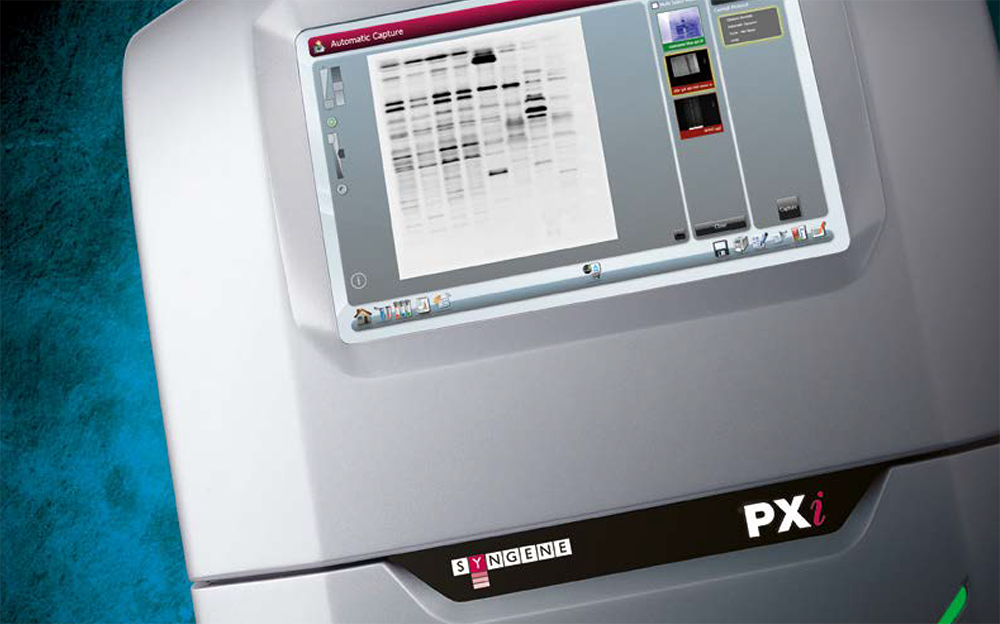

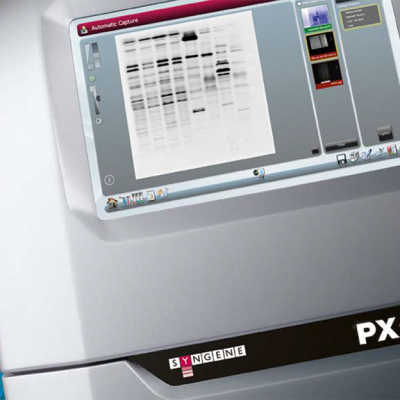

PXi/PXi Touch are available in three versions with a 4, 6 or 9 million pixel camera and suitable lens. PXi Access is available with a 6 or 9 million pixel camera and suitable lens.The high performance cameras result in the system having exceptional sensitivity. Chemiluminescence blots and faint fluorescent bands can therefore be easily imaged and captured. The PXi Touch and PXi Access have their own built-in screens and processors whereas the PXi is used with an external PC.
The PXi range can be used for a wide range of applications. A number of lighting options can be utilised including IR illumination, Red light, Blue light, Green light and the UltraSlim blue LED transilluminator. An integral 7 position filter wheel can accommodate a wide range of Syngene filters. The systems are controlled by the acclaimed GeneSys acquisition and capture software. Using its vast database, GeneSys can automatically configure PXi/PXi Touch/PXi Access to capture any type of image.
